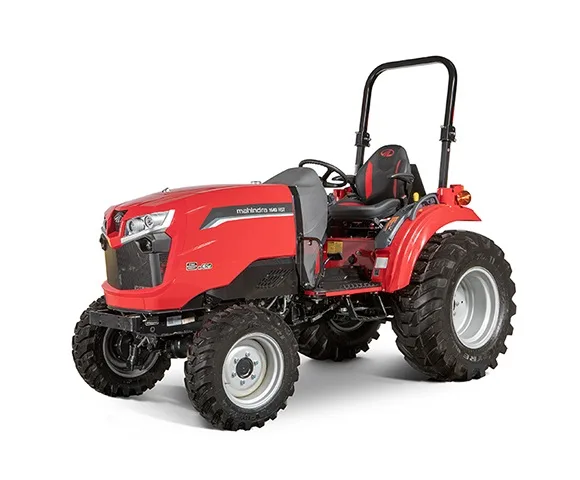

1640 HST Cab
| Engine type | Four-Stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine |
| Engine HP [kW] @ RPM | 38.7 (28.9) @ 2400 |
| Displacement [in3 (cc)] | 166.7 (2732) |
| Number of cylinders | 4 |
| Fuel tank [Gal (L)] | 7.7 (29) |
| Bore & stroke [in] | Bore : 3.5, Stroke : 4.3 |
| Transmission type | HST -3 Ranges |
| Number of speeds | Infinite |
| Clutch | Dry-Single |
| Max speed (mph) | 14.8 |
| Brakes | Wet Disc |
| PTO type | Live with o/r clutch |
| Rear PTO RPM | 540 @ 2376 |
| Mid PTO RPM | 2000 (Opt.) @ 2526 |
| PTO HP (kW) | 27.7 (20.6) |
| Type | Open Center |
| Maximum total flow [GPM (L/min)] | 11.4 (41.8) |
| Total pump output, main (GPM) | 7.7 |
| Total pump output, steering (GPM) | 3.4 |
| 3-Point hitch | CAT I with Telescoping Stabilizers & Flex Links |
| 3- Point hitch lift capacity @24" aft [lb (kg)] | 1720 (780) |
| Battery | 12 V, 925 CCA |
| Alternator | 12 V, 90 A |
| Overall length [in (mm)] | 127.8 (3245) |
| Wheelbase [in (mm)] | 76.9 (1954) |
| Turning radius [ft (m)] | 9.2 (2.8) |
| Overall width [in (mm)] | 62 (1575) |
| Overall height [in (mm)] | 89.4 (2270) |
| Minimum ground clearance [in (mm)] | 12.8 (325) |
| Weight [lb (kg)] | 3627 (1645) |
| AG [Front/Rear] | 7 x 16 / 11.2 x 24 |
| IND [Front/Rear] | 28 x 8.5-15 / 43 x 16-20 |
| TURF [Front/Rear] | 27 x 10.5-15 / 41 x 14-20 |
| Model number | 1640L |
| Max lift height (in) | 92 |
| Loader lift capacity [lb (kg)] | 1830 |
| Digging depth (in) | 3 |

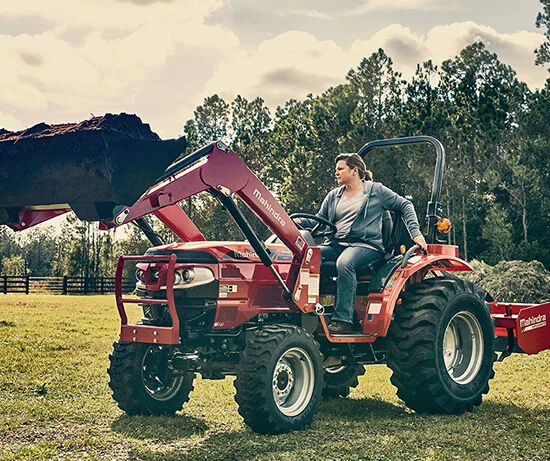

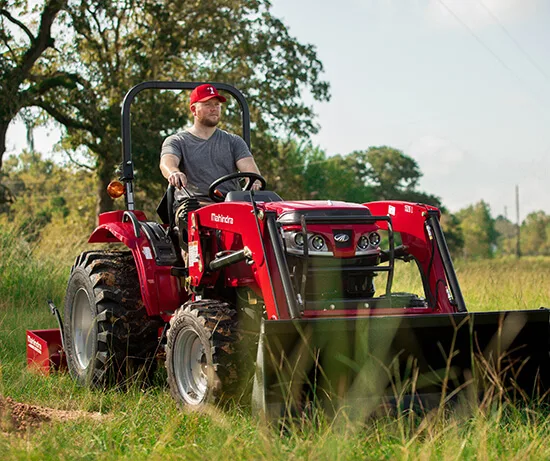

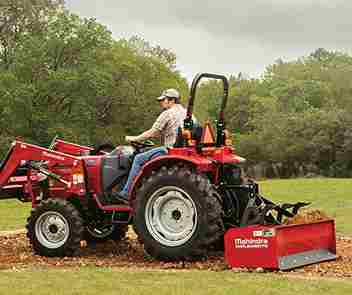

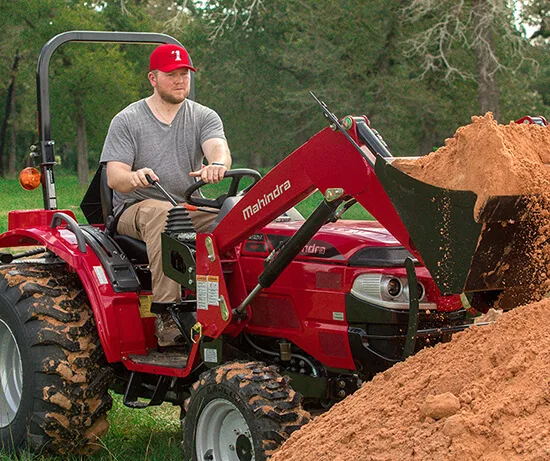

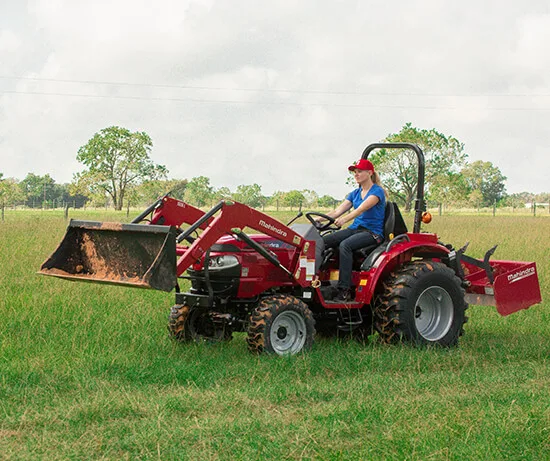

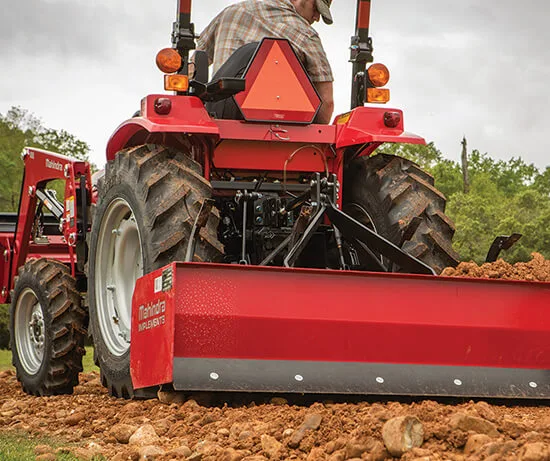

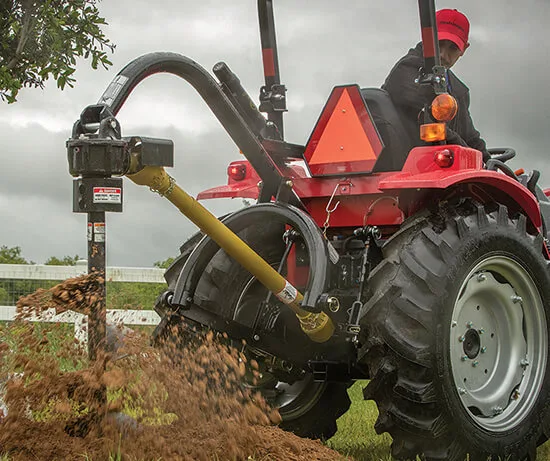

Gallery
