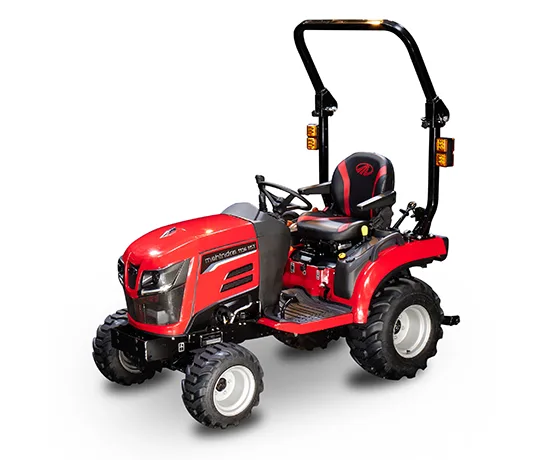

1123 HST
| Engine type | Naturally Aspirated, Indirect Injection, Water Cooled Diesel |
| Engine HP [kW] @ RPM | 22.8 (17) @ 2900 |
| Displacement [in3 (cc)] | 67.2 (1102) |
| Number of cylinders | 3 |
| Fuel tank [Gal (L)] | 6.6 (25) |
| Bore & stroke [in] | Bore : 3, Stroke : 3.2 |
| Transmission type | HST – 2 range |
| Number of speeds | Infinite |
| Clutch | N/A |
| Max speed (mph) | 7.3 |
| Brakes | Single pedal |
| PTO type | Independent Wet Clutch |
| Rear PTO RPM | 540 @ 2837 |
| Mid PTO RPM | 2500 @ 2837 |
| PTO HP (kW) | 18.3 (13.6) |
| Type | Open center with Position Control |
| Maximum total flow [GPM (L/min)] | 7.6 (28.7) |
| Total pump output, main (GPM) | 7.4 |
| Total pump output, steering (GPM) | 3.8 |
| 3-Point hitch | Cat I |
| 3- Point hitch lift capacity @24" aft [lb (kg)] | 771 (350) |
| Battery | 12.6 V, 650 CCA |
| Alternator | 12V, 55A |
| Overall length [in (mm)] | 100.4 (2550) |
| Wheelbase [in (mm)] | 55.1 (1400) |
| Turning radius [ft (m)] | 7.2 (2.2) |
| Overall width [in (mm)] | 46.3 (1177) |
| Overall height [in (mm)] | OS 86.6 (2200) Cab 80.5 (2044) |
| Minimum ground clearance [in (mm)] | 6.7 (169) |
| Weight [lb (kg)] | 1620 (735) |
| IND [Front/Rear] | 18×8.5-10 / 26×12-12 |
| TURF [Front/Rear] | 16×7.5-10 / 24×12-12 |
| Model number | L11 |
| Max lift height (in) | 73.2 |
| Loader lift capacity [lb (kg)] | 794 (360) |
| Digging depth (in) | 3.14 |
