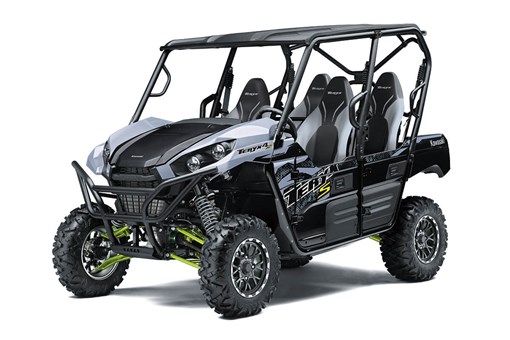

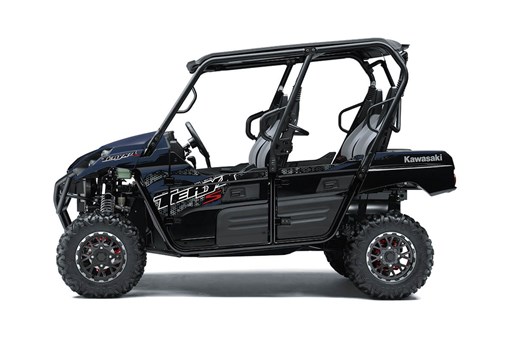

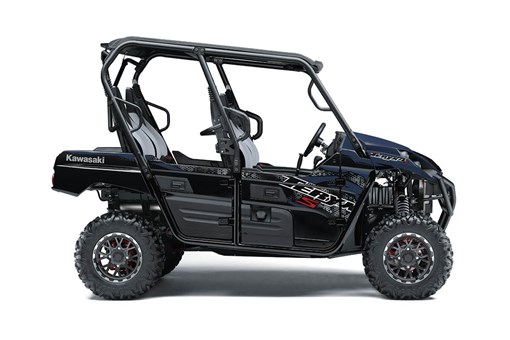

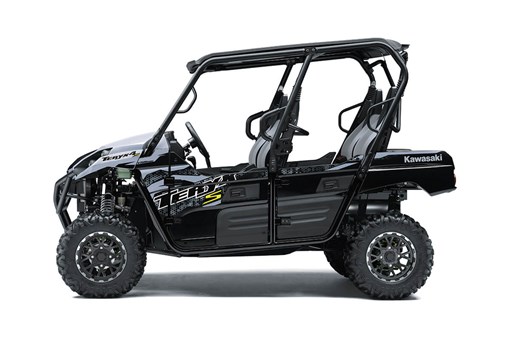

TERYX4 S LE
| Engine | 4-stroke, SOHC, 4-valve V-twin, liquid-cooled |
| Displacement | 783cc |
| Maximum Torque | 47.0 lb-ft @ 5,500 rpm |
| Bore x Stroke | 85.0 x 69.0mm |
| Compression Ratio | 10.7:1 |
| Fuel System | DFI® with (2) 36mm Mikuni throttle bodies |
| Ignition | TCBI with electronic advance |
| Starting System | Electric |
| Transmission | Automatic CVT with centrifugal clutch (H,L,N,R) |
| Final Drive | Selectable 2WD/4WD with locking front differential, shaft |
| Engine Braking | Yes |
| Front Suspension / Wheel Travel | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping/10.7 in |
| Rear Suspension / Wheel Travel | Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping/10.0 in |
| Front Tires | Maxxis® 27 x 9-14 |
| Rear Tires | Maxxis® 27 x 11-14 |
| Steering | Electric Power Steering (EPS) / rack-and-pinion |
| Front Brakes | Dual hydraulic discs with 2-piston calipers |
| Rear Brakes | Sealed, oil-bathed, multi-disc |
| Ground Clearance | 11.2 in / 12.2 in |
| Fuel Capacity | 7.9 gal |
| Turning Radius | 17.7 ft |
| Cargo Bed Dimensions (LxWxH) | 17.9 x 47.6 x 8.7 in |
| Cargo Bed Load Capacity | 249 lb |
| Payload Capacity | 1,000 lb |
| Seating Capacity | 4 |
| Towing Capacity | 1,300 lb |
| Lighting | (4) LED headlights, (2) LED taillights, LED stoplight |
| Frame | Steel Tube Double-X Reinforcement |
| Overall Length | 125.4 in |
| Overall Width | 62.6 in |
| Overall Height | 80.5 in |
| Curb Weight | 1,638.3 lb* / 1,640.5 lb* CA Model |
| Wheelbase | 88.2 in |
| Instruments | Multi-function digital meter with speedometer, fuel gauge, clock, hour meter, odometer, dual trip meter and parking-brake indicator, R/N/P/4WD, water temp and low-oil-pressure indicators |
| Wheel Type | Alloy |
| Additional Features | Roof |
| Color Choices | Ice Gray/Super Black, Metallic Matte Twilight Blue/Super Black, Cypher Camo Gray/Super Black |
